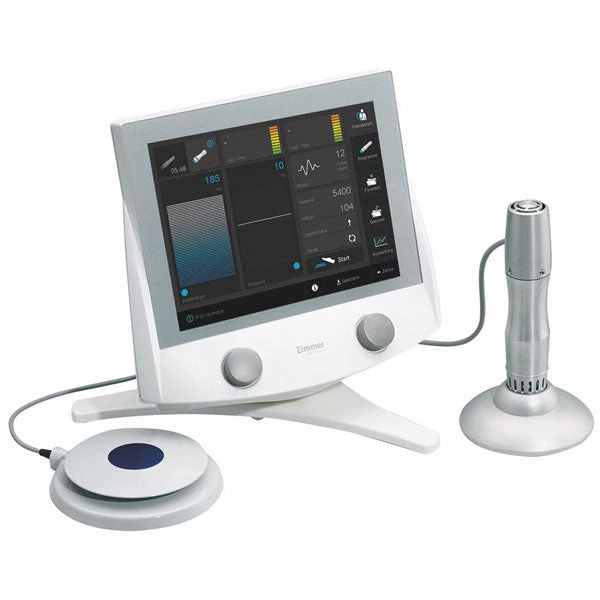

Zimmer EnPuls Pro Radial Pulse Wave Therapy Device Therapy Methods

The enPulsPro device delivers energy into the target tissue where traditional soft tissue therapy techniques cannot reach. This is all done with little or no stress on the therapist’s hands. A heavy duty, ergonomic aluminum hand piece delivers optimal energy to the patient while providing optimal protection against vibrations to the therapist’s hands. enPulsPro creates unique radial pulses by using a projectile 5 times heavier than standard air compressor systems and a reduced final velocity upon contact with the applicator.

Though the force of the accelerator and the mass of the projectile are efficient down to the required depth, they are more comfortable for the patient than comparable systems. Energy is maintained by a longer pulse rise time. This eliminates the need for unpleasant high peak pressure amplitudes.

• enPuls Softshot Technology – enPulsPro creates unique radial pulses by using a projectile 5 times heavier than standard air compressor systems and a reduced final velocity upon contact with the applicator. Though the force of the accelerator and the mass of the projectile are efficient down to the required depth, they are more comfortable for the patient than comparable systems.
• Increased Patient Comfort – LLess pain, same energy – that’s enPulsPro softshot technology. Energy is maintained by a longer pulse rise time. This eliminates the need for unpleasant high peak pressure amplitudes. The lower peak and longer rise time minimize the stinging and painful sensation that is normally associated with this type of therapy. Increased patient comfort results in easier treatments at higher energy levels, leading to successful therapy.

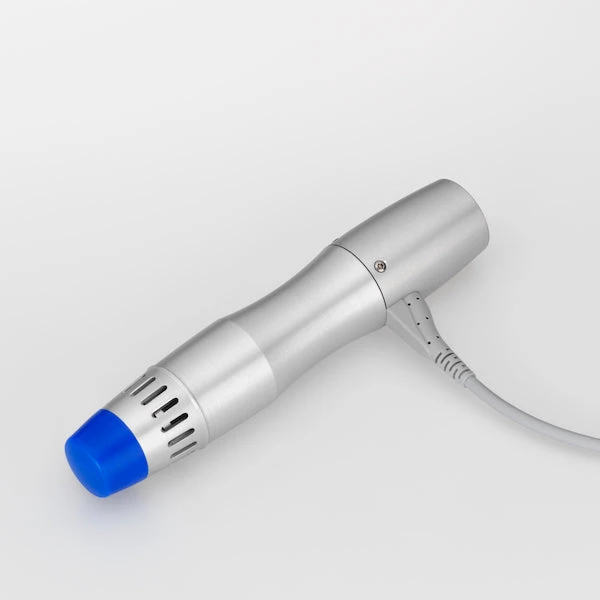

• Ergonomic – The high mass applicator reduces strain on clinicians. The ergonomic aluminum hand piece with high mass and ample inertia provides appropriate energy transfer to the patient. It also affords optimal protection against vibration for the healthcare professional. The design allows for single handed use allowing the second hand to be free to adjust treatment parameters in session.

• Technology: Compressor-free ballistic Radial Pulse Therapy system with electromagnetic generator for projectile acceleration
• Power Levels / Energy: 60-185 mJ freely selectable in 10 mJ increments
• Modes:
  • Frequencies from 1 to 22 Hz
  • 3 Burst modes (4 / 8 / 12 pulses)

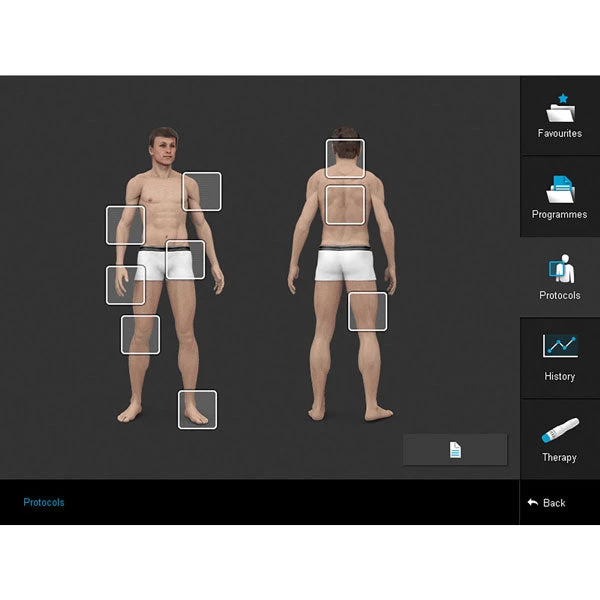

• Programs: 7 preset programs, customizable
• Controls:
  • 7″ color touchscreen for all software operations
  • Rotary control for energy level and for frequency
  • Hand piece operation with multi-directional foot switch
• Dimensions: 7.9 x 13.8 x 11.8 inches (L/W/H) Weight 8.4 lbs. (without hand pieces)
